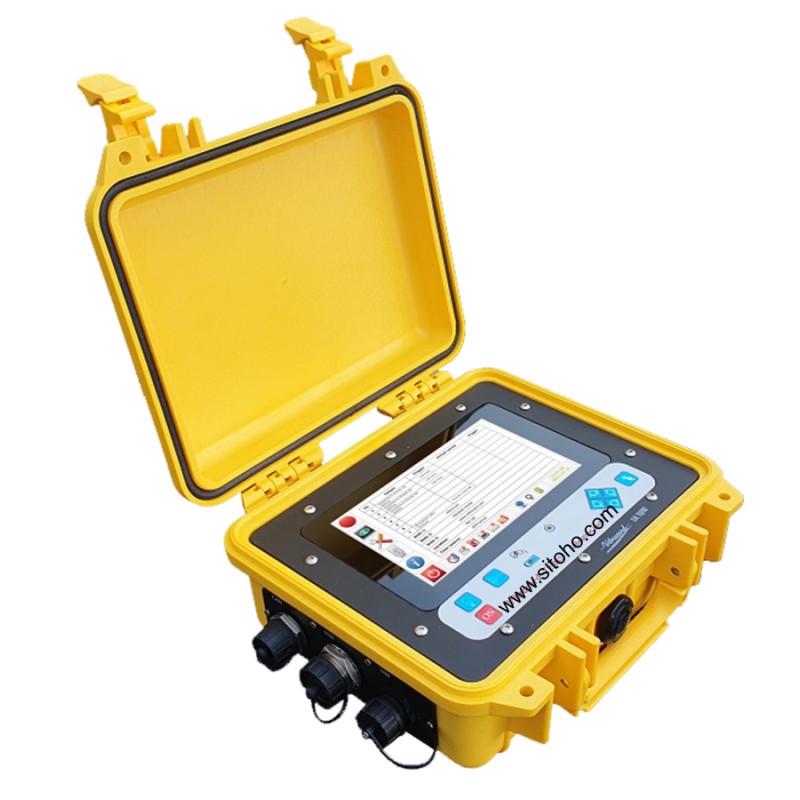

Vibracod Tellus 4 Channel Vibration Meter (2-250Hz & 1-315Hz)

  • Merk : Vibracord (Spanyol)
  • Minimal Pembelian : 1 UNIT
  • Maksimal Pembelian : 100 UNIT
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 112 Kali
  • Pembaruan : 09-10-2025 09:04
Dapatkan Spesifikasi Harga Vibracod Tellus 4 Channel Vibration Meter (2-250Hz & 1-315Hz) Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Produk Detail

 VIBRATION METER - BLASTING MonITOR (2-250Hz & 1-315Hz)

Type      : Vibracord Tellus 4 Channel

Product : Vibraquipo (Spanyol)



▪ Number of Channel  : 4 channel
▪ Sample rate  : 2048 SPS
▪ Frequency range  : 2 ~ 250 Hz (ISEE)
    : 1-315 Hz & 1-80 Hz (DIN 45669-1)
▪ Trigger mode  : Automatic  : Manual : External
▪ FFT Calculation : Equipment and computer
▪ Data transfer modes : USB Disk, Web Server
      FTP Server, SFTP Server
▪ Data Visualization  : Screen, Printer, WEB Server,
      FTP Server, E-mail
▪ Screen : 7" TFT Color 800x480 pixels
▪ Keyboard  : 8 keys
▪ Data storage memory : Up to 30.000 record
▪ Intenal power supply  : Li-Ion rechargeable battery
▪ Dimensions / weight : 370 x 230 x 100 / 3 kg
▪ Environmental : IP-65 (Equipment, IP-68 (Geophone)
▪ Complete Unit  :
1 Recording unit
2 Two  three-axis bloks geophones
3 Six spikes for fixation
4 One Microphone for air wave recording
5 Tripod for Microphone
6 External power supply
7 Analysis program
8 User Manual and Certificate Calibration
9 Carrying case
10 Printer Module : thermal printer with 58mm paper roll
11 1-315 Frequency range (DIN 45669)  with Two Block Geophones
