Terminator Jaw Crusher dari TM Engineering Model JCT#1AL Automatic Lubrication

  • Merk : TM Engineering
  • Minimal Pembelian : 1 UNIT
  • Maksimal Pembelian : 100 UNIT
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 129 Kali
  • Pembaruan : 23-04-2025 08:26
Dapatkan Spesifikasi Harga Terminator Jaw Crusher dari TM Engineering Model JCT#1AL Automatic Lubrication Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Produk Detail

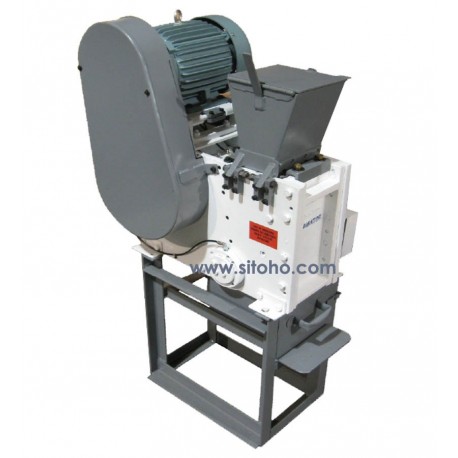

 Terminator Secondary Jaw Crusher

Model : JCT#1AL

Brand : TM Engineering (Canada)


Spesifikasi :

▪ TERMINATOR Jaw Crusher Model JCT#1AL- Automatic Lubrication,
  capacity 5" X 7" Unit, equipped with one set of smooth or serrated jaws
  (alloy 1 or 2), 208/220/440/575 volt, 3 phase, 60 cycles, 5 HP motor,
  automatic lubricating system also powered by electric motor, accessories for
  adjustment of jaws, and rubber mat for underneath crusher.
  This model needs only to be connected to your power supply,
  all pre-wiring is done at the factory
▪  Maximum Feed Size  : 130mm x 178mm
▪  Minimum Output   : 95% Less than 2mm (-10mesh)
▪  Output size at approx half jaw  : 97% less than 6mm
▪  Troughput at min. output opening : 100kg/hr
▪  Troughput at half jaw : 360kg/hr (Opening output size)
▪  Motor   : 3,7 kW or 5.5 kW motor, 3 phase, 50 or 60Hz
   Dimension  : 387mm at base 560mm
      top motor x 104mm x 486 on the stand
▪ Environmental Enclosure : for Dust Control (includes a stand 24" w/ drawer)
▪ Dust Collecting Hopper : with connection for exhaust pipe for 4" duct
