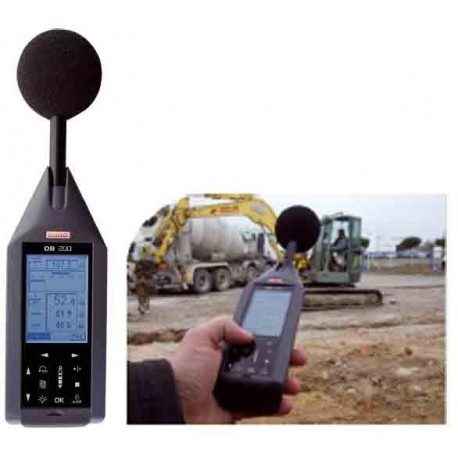

Sound Level Meter DB-200 KIMO Instruments

  • Merk : Kimo Instrument
  • Minimal Pembelian : 1 UNIT
  • Maksimal Pembelian : 100 UNIT
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 193 Kali
  • Pembaruan : 26-08-2026 15:32
Dapatkan Spesifikasi Harga Sound Level Meter DB-200 KIMO Instruments Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Produk Detail

 Sound Level Meter and Calibrator

Type : DB200

Product : Kimo (Francis)



Specification :

a. Sound Level Meter
▪ Accuracy : Class 2
▪ Microphone type : Electret ICP – ½' -
▪ Sensibility : 15 mV/Pa
▪ Measuring type : Free-field
▪ Measurement dynamic : Lp/Leq : 100 dB -
▪ Lpk : 50 dB
▪ A-weighted : 30-130 dB
▪ C-weighted : 35-130 dB
▪ Z-weighted : 35-130 dB
▪ Peak channel : 83-133 dB
▪ X frequency : A – C – Z
▪ Y frequency : F (fast) – S (slow)
▪ I (impulse)  : Peak (pk)
▪ Logging time for short Leq   from 1 s to 60 s
▪ Sampling for Lp   from 1 s to 60 s
▪ Measured values   LXY – LXYmax – LXYmin -
      LXeq,T – LXeq,DI – LXE –
      LXeq,DImax – LXeq,DImin
▪ Statistics indices LXN on
  Lp and Leq samples : LX01 – LX10 – LX50 –
      LX90 – LX95 – resolution 1dB.
▪ Measured values
  Simultaneously Storage : All according LXY or LXeq choice
▪ Detection and
▪ percentage of overload : Alarm graphics and calculation of
      percentage during the storage
▪ Screen : LCD monochrome 16 levels –
      digital and analogue display
      3D effect on display
▪ Keypad : 8 sensitive keys
▪ Internal clock : Saved by internal battery
▪ Memory module : integrated Micro SD card type
      data transfer by USB cable
▪ Environment : from -10 °C to +50 °C
▪ Humidity : from 0 to 90% HR
▪ Dimensions (L x l x e) : 270 x 70 x 40 mm
▪ Weight (including batteries) : 280 gr
▪ Fixing : Insert at rear for fixing on tripod
b. Automatic Check
▪ Main level of acoustic pressure : 94 dB ± 0,4 dB
▪ Main frequency : 1000 Hz ± 5 Hz
▪ Distortion : DHT < 3%
▪ Authotization for calibration : Green light
▪ Transmission time : 1 minute
▪ Standards : NF EN 60942 : 2003 –
      CEI 60942 : 2003
▪ Accuracy : Class 2
▪ Power supply : 2 alkaline batteries – 1,5 V
▪ Storage : From 0°C to +60 °C
▪ Overall dimensions : L: 185mm-W : 35mm-T : 31mm
▪ Weight : 118 g (with batteries)
