REAL TIME WATER QUALITY MONITORING SYSTEM Type : WQM-35

  • Merk : Impor
  • Minimal Pembelian : 1 UNIT
  • Maksimal Pembelian : 100 UNIT
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 89 Kali
  • Pembaruan : 26-08-2026 15:34
Dapatkan Spesifikasi Harga REAL TIME WATER QUALITY MONITORING SYSTEM Type : WQM-35 Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Produk Detail

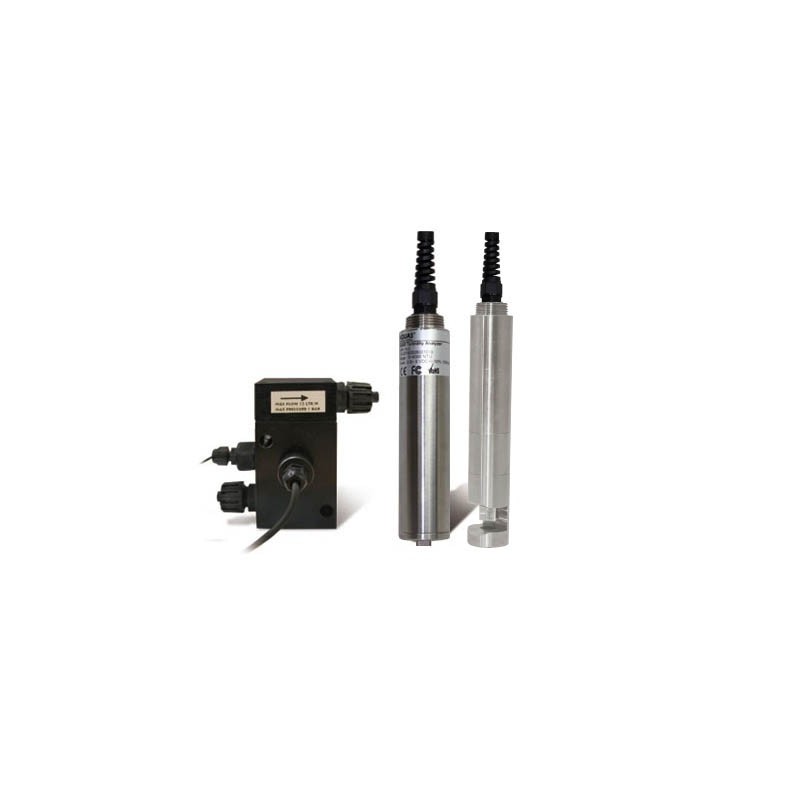

 REAL TIME WATER QUALITY MonITORING SYSTEM

Type : WQM-35

Spesifikasi :

A. Parameter yang di ukur   Range Accuracy
▪ COD  : 0-10.000 mg/l ±5%
▪ Temperature : 0˚ C - 85˚ C ±0.5 °C; ±0.1 °C
▪ Dissolved Oxygen : 0-50 mg/l 0,1 mg/L
▪ pH : 0 - 14pH ±0.05 pH
▪ Turbidity : 0 - 10.000 NTU ±5%FS
▪ TDS : 0 - 3000 mg/L ±1%FS
▪ TSS : 0 - 50.000 ng/L ±5%FS
▪ Ammonia : 0 - 1100 mg/l ±5%FS
▪ Nitrate : 0 - 1000 mg/L ±5%
▪ Nitrite : 0 - 100 mg/L ±5%
▪ BOD : 0 - 5,000 mg/L ±5% in standard solution
▪ Conductivity : 0 - 200 mS/cm ±1% FS
▪ Salinity : 0 - 14.9 ppt ±1% FS
▪ Depth : 0 - 100 m ±0,1% FS; 0.05% FS
▪ ORP : -1500 - 1500 mV ±5 mV
▪ Debit : 0.02~15 m/s ± 0.02 m/s

B. Monitoring Instruments (Fiture HMI)
▪ 7" color touch screen LCD display
▪ Operating temperature: 0~65 C
▪ Operating humidity: 0~95% RH
▪ 16 MB solid state, rotating memory,
  no data loss after power failure
▪ IP66 enclosure

C. Water Quality Spectro
▪ Measurement range : UV-IR 200~800 nm
▪ Light source : Xenou flash lamp, 20 years life
▪ Light path : 1, 2, 5, 10, 35 mm (selectable)
▪ Measurement interval : 10 sec to 1 hour (adjustable)
▪ Operation pressure : Max. 10 Kgf/cm2
▪ Operating temperature : -10~50 o
▪ Process flow rate : max.3 m/s
▪ Safety : CE, FCC
▪ Protection : IP68
