Portable Vibration Meter VM24

Dapatkan Spesifikasi Harga Portable Vibration Meter VM24 Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Nama alat : Portable Vibration Meter

Type : VM24

Product : MMF (Germany)

Specification :

1	Main Unit
▪	Vibration Accelerometer	:	0,1 - 240 m/s²; 0,2 Hz - 10 kHz; 3 Hz - 1 kHz,
			1 kHz - 10 kHz
▪	Vibration velocity	:	0,1 - 1000 mm/s;
			2 - 300 Hz; 10 - 1000 Hz
▪	Vibration Displacement	:	0,01 - 60 mm; 2 - 300 Hz
▪	Accuracy Vibration	:	± 5 % ± 2 Digits
▪	Data Memory	:	16000 values; USB interface;
			optional PC software for data and measuring
			point management
▪	Display	:	OLED graphical display;
			colored; 128 x 160 pixels
▪	Power Supply	:	3 x LR03 / HR03 / AAA batteries or NiMH
			accumulators; operating time 8 - 12 h;
			USB supply
▪	Operating Temp.Range	:	-4 .. 140 °F, < 95 % relative humidity,
			no condensation
▪	Dimension/weight	:	125 mm x 65 mm x 27 mm;
			140 g with batteries and without sensor
2	Accelerometer
▪	Type	:	Piezoelectric shear accelerometer with
			low-power IEPE output; M12 connector;integral
			magnet, VMID read contact in base
▪	Sensitive	:	3,5 mV/ms-2
▪	Transverse sensitivity	:	< 5 %

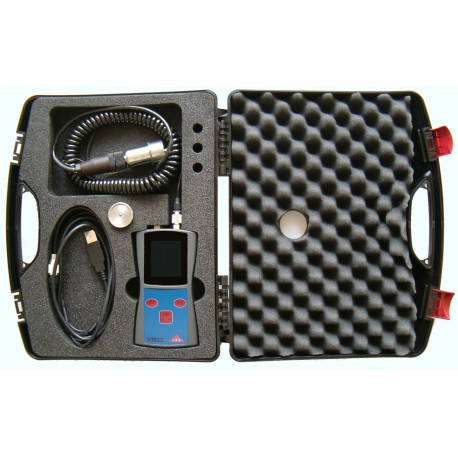

3	Accessories	:	Instrument (Main Unit)
		:	Vibration sensor with spiral cable
		:	USB cable
		:	Instruction manual
		:	Plastic case
