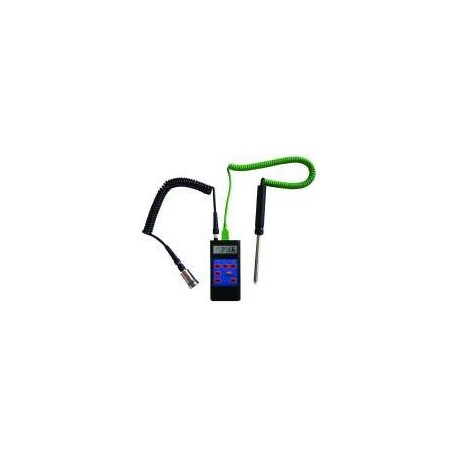

Portable Vibration Meter VM15

Dapatkan Spesifikasi Harga Portable Vibration Meter VM15 Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Portable Vibration Meter for Machine

Type : VM-15

Specification :


▪	Vibration acceleration Range
	Range	:	0,5 .. 200 m/s²
	Accuracy	:	± 5 %, ± 2 digits
	Frequency	:	3 .. 10 000 Hz (-3 dB)
▪	Vibration acceleration, highpass filtered
	Range	:	0,5 .. 200 m/s²
	Accuracy	:	± 5 %, ± 2 digits
	Frequency	:	1000 .. 10 000 Hz (-3 dB)
▪	Vibration velocity
	Range	:	0,5 .. 200 m/s
	Accuracy	:	± 5 %, ± 2 digits
	Frequency	:	3 .. 1000 Hz (-3 dB)
▪	Display modes	:	True RMS and true peak-to-peak value
			selectable by key
▪	Display	:	3 1⁄2 digits LCD, character height 8.9mm
▪	Signal output	:	AC signal of selected measuring range,
			± 3 V via 100 Ω, 3.5 mm phone jack
▪	Shut-off timer	:	after 1 .. 2 minutes
▪	Battery	:	9 V battery (IEC 6F22 / PP3) or
			accumulator, battery indicator with LED
▪	Battery operating time	:	approximately 20 h with Alkaline battery,
			approximately 5 h with NiMH accumulator
▪	Operating temperature	:	-4 .. 130 °F, < 95 % relative humidity,
			no condensation
▪	Dimensions	:	125 x 60 x 25 mm (with out sensor)
▪	Weight	:	150 g (with out sensor)
