Portable Vibration Meter VM12

Dapatkan Spesifikasi Harga Portable Vibration Meter VM12 Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

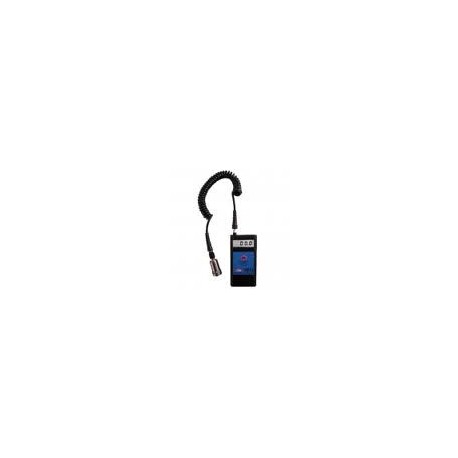

Portable Vibration Meter for Machine

Type : VM-12 (MMF-Germany)

Specification :

▪	Measuring range	:	0,5 .. 200 mm/s; 10 .. 1000 Hz
▪	Display quantity	:	True RMS
▪	Display	:	3 1⁄2 digits LCD, character height 8.9mm
▪	Shut-off timer	:	after 1 .. 2 minutes
▪	Battery	:	9 V battery (IEC 6F22 / PP3)
▪	Battery indicator	:	by LED
▪	Battery operating time	:	approx. 30 h with Alkaline battery,
			approximately 7 h with NiMH accumulator
▪	Operating temperature range	:	-4 .. 130 °F, < 95 % relative humidity,
			no condensation
▪	Dimensions without sensor	:	4.4 x 2.1 x 0.9 in³
▪	Weight without sensor	:	130 g
▪	Type	:	Piezoelectric shear accelerometer,
			Low Power IEPE
▪	Sensitivity	:	approx. 2 mV/ms-2
▪	Resonant frequency	:	> 28 kHz
▪	Transverse sensitivity	:	< 5 %
▪	Cable	:	Coiled cable, stretched length
			approximately 1.5 m, Ø 4 mm
▪	Dimensions	:	Ø .74 in x 1.6 in height
▪	Weight	:	50 g
▪	Coupling	:	M5 thread, clamping magnet Mod. 008,
		:	probe Mod. 001 (both included)
▪	Standard accessories	:	Main Unit
		:	Vibration sensor with spiral cable
		:	Clamping magnet Mod.008
		:	Vibration probe Mode.001
		:	Manual Book
		:	Plastic case
		:	Belt Case
