PORTABLE ULTRA-LOW TEMPERATURE FREEZER SHUTTLE TM MODEL ULT-25N

  • Merk : TM MODEL ULT-25N
  • Minimal Pembelian : 1 UNIT
  • Maksimal Pembelian : 100 UNIT
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 58 Kali
  • Pembaruan : 30-04-2025 11:02
Dapatkan Spesifikasi Harga PORTABLE ULTRA-LOW TEMPERATURE FREEZER SHUTTLE TM MODEL ULT-25N Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Produk Detail

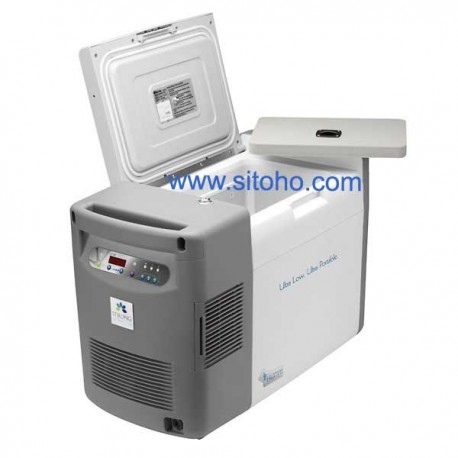

 PORTABLE ULTRA LOW TEMPERATURE FREEZER

Type : ULT-25N



Specification :

1.Application, Rating and Electric Data
▪ Application  : Storage of general (non-flammable)
      laboratory materials
▪ Storage Volume  : 25 liters (0.9 cu.ft.)
▪ Storage Capacity : 18 standard 2" boxes
▪ Temp. Range  : -86°C to -20°C @ 32°C (90°F) ambient,
      uniformity ± 0.75°C top to bottom, adjustable in 1°C
      increments Presets for -86°C, -40°C and -20°C
▪ Electric Power  : 120V or 240V, AC; 60Hz or 50Hz;
      or 12V DC from mobile source
▪ Max. Power  : 280 watts (3.6 amps @120V, 1.8 amps @240V )
▪ Auto-Voltage C  : 88V to 264V, 50 or 60 Hz
▪ Electric Rating  : 15 amp or greater grounded circuit
▪ Certification  : CE
▪ Noise  : Typical of laboratory equipment
2.Controller:
▪ Controller Type : Microprocessor controls
▪ Security  : Lockable lid
▪ Alarms  : Setpoint ± 10°C Warm and Cold
▪ Control Sensor  : One RTD (PT100 Class B)
3.Refrigeration System
▪ Cooling Engine  : Humm™ helium charged free-piston Stirling engine
      with continuous modulation
▪ Heat Transport   : Gravity driven thermosiphon operates on a cooling
      medium of 0.4 oz to 0.9 oz (10 to 25 grams)
      depending on medium used
▪ Refrigerant  : R-508B nonflammable CFC/HCFC-Free
▪ Evaporator  : Cold wall (inner liner)
▪ Defrost Method  : Manual
4.Performance Data, Empty Cabinet
▪ Steady Energy  : < 2.8 kWh/day at -80°C Setpoint
▪ Heat Dissipation  : 403 BTU/h (load to HVAC) at -80°C Setpoint
▪ Pull-Down : from 25° C Ambient : 2,2 hours
▪ Warm-Up -80°C  : 30 minutes to -60°C
    : 70 minutes to -40°C
    : 130 minutes to -20°C
5.Dimensions and Construction
▪ Interior  : (L x W x D) 332 x 221 x 340 mm
▪ Exterior  : (L x W x D) 692.5 x 350 x 460 mm
▪ Net Weight, : Empty 21 kg (46 lbs.), nominal
▪ Shipping Weight  : 26.3 kg (58 lbs.), nominal
