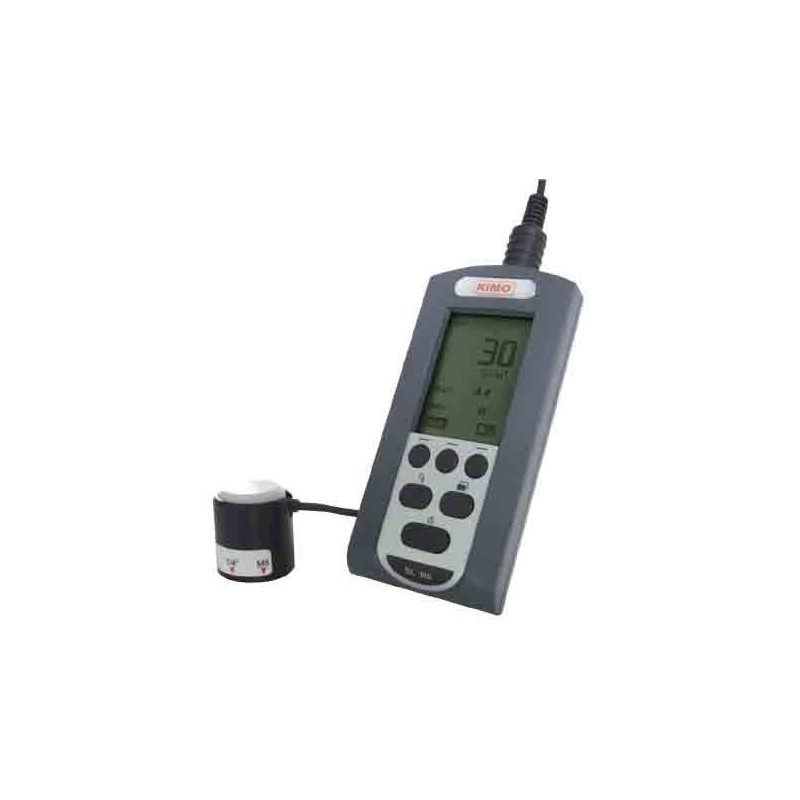

PORTABLE SOLARIMETER SL-200 KIMO

Dapatkan Spesifikasi Harga PORTABLE SOLARIMETER SL-200 KIMO Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

PORTABLE SOLARIMETER
Type : SL-200
Product : Kimo Instruments

Specification :
1. SL-200
	Solar irrigation measuring range	:	from 1 W/ m2 to 1300 W/ m2
	Energetic exposure measuring range	:	1 Wh/ m2 to 500 kWh/ m2
	Frequency of the measure	:	2 / s
	Accuracy	:	5% of measurement
	Calculation frequency ( W/ m2)	:	1 / min ( average on 60 seconds)
	Storage capacity	:	31 days, 44640 saved recording points
	Fast datas download	:	1000 values/ second
	Detection	:	Out of range and sensor default
	Operating temperature	:	from -10° C to + 50° C
	Storage temperature	:	From -10° C to + 55° C
	Package dimensions	:	58 x 120 x 33 mm
	Autonomy	:	More than 72 hours in continuous mode
		:	Unlimited with power supply adapter
	Power supply	:	3 LR3-AAA batteries
	Electronic	:	Digital
	Electronic card	:	Varnish
	Conformity	:	In accordance with RoHS directives

2. SOLAR CELL
	Spectral response	:	from 400 to 1100 nm
	Nominal sensitivity	:	100mv for 1000W/m2 *
	Response in cosine	:	corrected until 80°
	Coefficient in temperature	:	+0,1% /°C
	Effective area	:	1 cm2
	Humidity dependence	:	100% RH
	UV performance	:	excellent (PMMA filter)
	Mode	:	photovoltaic
	Material.	:	polycristallin silicon
	Front face	:	translucent PMMA
	Cell weight.	:	.60g
	Cell dimensions	:	30 x 32 mm
	Cable length	:	1,25 m (can be unplugged)
