Produk Detail

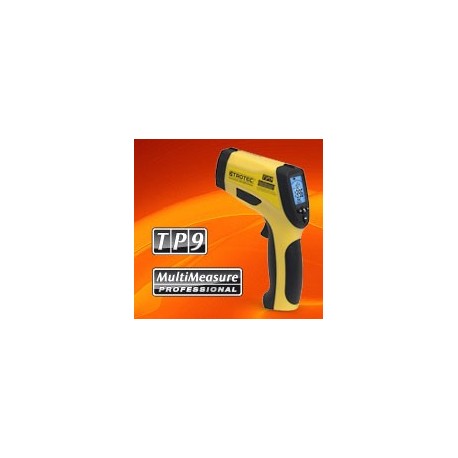

Type : TP9

Brand : Trotec (Germany)

Specification :
- Optical resolution : ( D: S) 50: 1
- Temperature range : -50° to 1, 600 ° C
- Resolution : d 1, 000 ° C: 0.1 ° C; > 1, 000 ° C: 1 ° C
- Accuracy : ± 2.5 °C at -50 °C to 20 °C; ± 1 % ± 1 ºC at 21 °C to 400 °C; ± 1.5 %
  ± 2 º C at 401 ° C to 800 ° C; ± 2.5 % at 800 ° C to 1, 600
- Reproducibility : ± 1.3 °C at -50 °C to 20 °C; ±0.8 % ±0.5 °C at 21 °C to 1, 200 °C; ±1.2 % ± 1.0 °C at 1, 201 °C to 1, 600 °C

- Measurement spot ø : 25.4 mm @ 1, 270 mm Reaction time : 150 ms

- Degree of emission : Adjustable from 0.10 to 1.0
- Spectral sensitivity : 8 ~ 14 µ m
- Operating temp : 0 ° C to 50 ° C, 10 % to 90 % r.h.
- Storage conditions : -10 ° C to 60 ° C, < 80 % r.h.
- Power supply : 9V block battery
- Dimensions : 220 x 120 x 56 mm
- Weight : 290 g
