PORTABLE HUMAN VIBRATION METER VM-31

Dapatkan Spesifikasi Harga PORTABLE HUMAN VIBRATION METER VM-31 Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

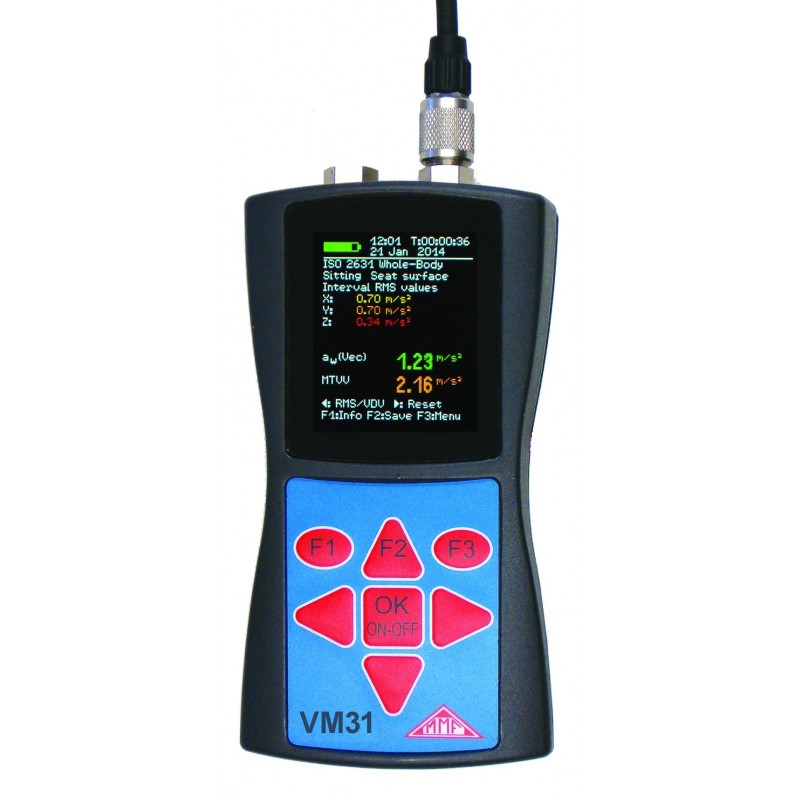

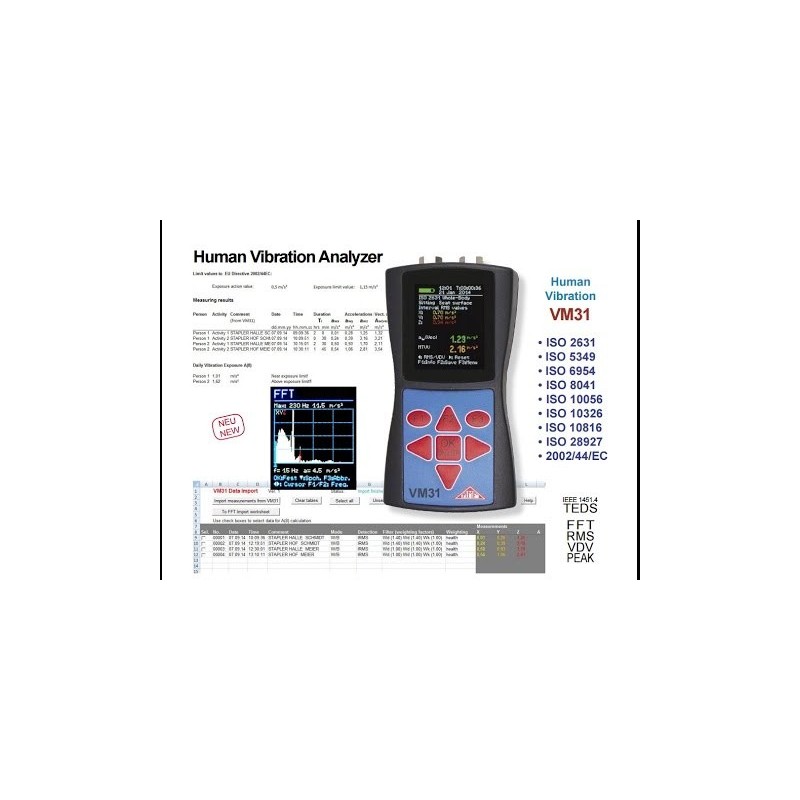

PORTABLE HUMAN VIBRATION METER

Type : VM31

Product : MMF (Germany)

Specification :

▪	Input	:	4 low-power IEPE inputs; 1 mA / 17V; TEDS
			support, IEEE1451.4, Template 25
▪	Sensor	:	Low-power IEPE, sensitivity 0.8 - 120 mV/ms-²
▪	Range (sensor 1 mV/ms-²)	:
	- Acceleration	:	800 m/s²;
	- velocity	:	100 - 10000 mm/s
	- Displacement	:	250 - 15000 μm
▪	Linearity range	:	>75 dB for ± 6 % error
▪	Noise	:	< 0,003 m/s²
▪	Filter	:	Weighting filters Wb, Wc, Wd, Wh, Wj, Wk, Wm,
			unweighted: 6.3 . 1259 Hz (H/A) / 0.4 - 100 Hz (G/K)
	- Acceleration	:	0.2 - 1500Hz / 1 - 1000 Hz;
	- velocity	:	1-100Hz/ 2-1000Hz/ 10 -1000 Hz;
	- displacement	:	5 - 250 Hz
▪	Daily exposure A(8)	:	A(8) calculation for several activities and
			test persons by Excel macro vm31.xlsm
▪	Frequency analysis (FFT)	:	125 lines for X/Y/Z, peak spectrum of acceleration
			3 - 240/ 6 - 480 / 12 - 960/24 - 1920 Hz
▪	Data memory	:	Flash, 10 000 measurements, 1000 FFTs,
			each with date, time and comment
▪	Display	:	OLED, 128 x 160 pixels, colored
▪	USB interface	:	USB 2.0, full-speed, CDC mode
			(virtual COM port), via cable VM2x-USB )
▪	Battries	:	3 accumulators HR03 or Alkaline
			cells LR03 (size AAA), 10 - 14 hours operation
▪	Size	:	5 in x 2.5 in x 1.1 in; 5 oz
▪	Complete Unit :	:	Main Unit
		:	Triaxial accelerometer
		:	Sensor kabel 3 m
		:	Triaxial Seat accelerometer
		:	Handle Adapter
		:	USB cable VM2x-USB,
		:	Batteries,
		:	Instruction manual,
		:	Plastic carrying case
