Portable Flue Gas Analyzer Type : 4000

Dapatkan Spesifikasi Harga Portable Flue Gas Analyzer Type : 4000 Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

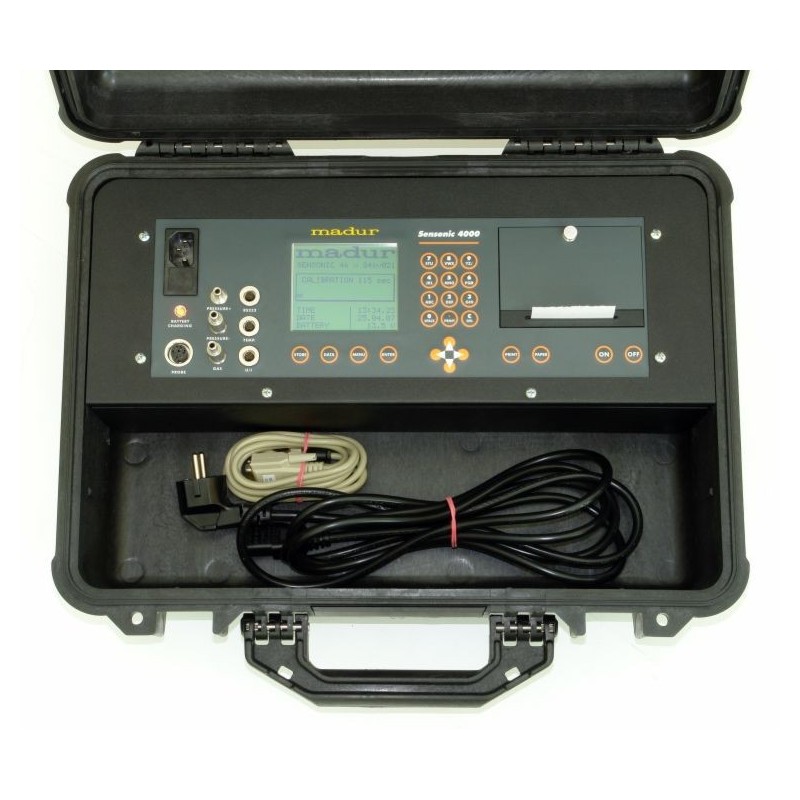

Portable Flue Gas Analyzer

Type : 4000

Product : Sensonic

Specification :

▪	Parameteres
1	O2 : 0 - 25%
2	CO : 0 - 20,000 ppm
3	SO2 : 0 - 5000 ppm
4	NO2 : 0 - 1000 ppm
5	CO2 (Calculated)
▪	Processing and presentation of measured data
-	All results shown on display
-	Averaging of all measured values time: 10 sec - 60min
-	Graphical presentation of all measured values as diagram
-	Memory capacity for 1024 sets of data
-	Up to 9 separate items in a data set
-	User definition of the 9 items
-	Memory capacity for 30 reports
-	Data logger function for the analogue inputs
-	All measured values, stored values or displays can be
	printed on the internal printer.
-	Powerful PC program for analyser settings and data comm
▪	Display : Graphical - LCD, with backlight and
	variable contrast,128x112pixels,75x64mm
▪	Printer : High-speed dot matrix printer with graphic
	capability for 57mm normal papers
▪	Data Memory : Memory for 30 reports and 10 banks
	containg a total of 1024 set of data
▪	Interface : RS232C
▪	Power supply : 110/220V AC 50 ÷ 60Hz
▪	Charging time : Lead-acid battery 12V / 2.2Ah, charging
	time 10 h working time approx. 6h
▪	Gas pump : Membrane pump, electronically regulated
	at 90l/h
▪	Probe : Probe Heated for soot test
▪	Probe length 300 mm
▪	Length of gas line 3 m
▪	Gas filter In line filter 20 μm
▪	Size : 270 x 175 x 245mm
▪	Weight : ±6,2 kg
