Flicker Fusion Test | Alat Ukur Kelelahan Seseorang

  • Merk : United States America (USA)
  • Minimal Pembelian : 1 UNIT
  • Maksimal Pembelian : 100 UNIT
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : Rp. 1 / UNIT
  • Dilihat : 140 Kali
  • Pembaruan : 30-04-2025 10:10
Dapatkan Spesifikasi Harga Flicker Fusion Test | Alat Ukur Kelelahan Seseorang Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Produk Detail

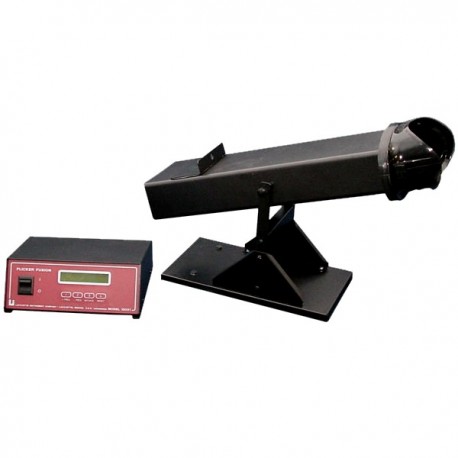

 Flicker Fusion Test

Negara asal : USA



 Specification :
 ▪  Power Supply : 10 VDC @ 1.5A, 2.1mm center positive DC plug
 ▪  Fuse : 0.5A 5 x 20mm fast blow
 ▪  Frequency : 1.0 to 100.0 Hz in 0.1 Hz increments with an error of 0.05%
 ▪  Slide Holder : 2” x 2” 35mm holder for optional 12100 neutral density
    : filters with 0.1% to 50% light transmission
 ▪  Ramp Rates : options of 0.5, 1, 2, and 4 Hz per second
 ▪  Analog Input
:
3.5mm mono phone plug with voltage range from 0.1 to 10V
    : for 1.0 to 100.0 Hz flicker rate; ABSOLUTE MAX. INPUT = 14V
 ▪  External Initiate : SPST normally open hand-held switch with RCA input
 ▪  External Respons : SPST normally open hand-held switch with 3.5mm stereo plug
 ▪  RS-232C  : Port Settings 9600 baud, no parity, 8 data bits, 1 stop bit
 ▪  Max. Luminance : 58 Cd/m2
 ▪  Viewing Angle : 1.9o
 ▪  Light/Dark Ratio : 1 : 1
 ▪  Stimulus Color : White
 ▪  Chamber Mask : Hypo-allergenic black silicone; mask may be cleaned
    : with an alcohol wipe
 ▪  Control Size : 8 5/8”W x 6.5”L x 3 ¼”H; Weight 1.8 lbs
 ▪  Chamber Size : 7”W x 19”L x 16”H; Weight 7.4 lbs
 Complete Unit   : Control Unit (1pcs)
    : Viewing Chamber (1 pcs)
    : 10 VDC wall mount AC adapter  (1 pcs)
    : DB9 Female to Female cable (1 pcs)
    : DB15 Male to Female cable (1 pcs)
    : Single hand-held push button (1 pcs)
    : Dual hand-held push button (1 pcs)
