Electrical Cuppelation Furnace ECF-50

  • Merk : Impor
  • Minimal Pembelian : 1 UNIT
  • Maksimal Pembelian : 100 UNIT
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 199 Kali
  • Pembaruan : 28-08-2026 13:46
Dapatkan Spesifikasi Harga Electrical Cuppelation Furnace ECF-50 Produk Terbaik dari BOARDING KIT Distributor Alat Kesehatan Lingkungan

Produk Detail

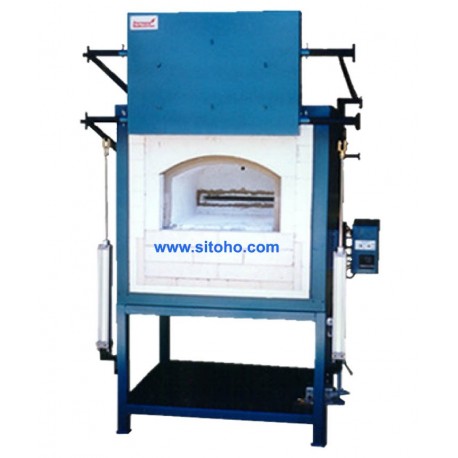

 Cuppelation Furnace

Type : ECF-50

Specification :

▪ Construction : Cabinet of 2 & 5 mm zinc anneal steel lined
      with insulating firebrick. Backed with Superwool
      insulation board.
▪ Muffle Dimension : 200mm high x 260mm wide x 460mm deep
▪ Heating Elements   12 x Silicon Carbide elements rated at 10.5kW/
      15kW/24kW, 3 Phase. Power supply is per a
      multi-tapped double wound transformer
▪ Door Operation : Counter-balanced, rising
▪ Temperature Control : Electronic, Automatic control 1200°C,
      Type “K” Thermocouple, High Temperature alarm,
      over temperature controller
▪ Electrical Requirements : 10.5kW, 3 Phase
▪ Approximate overall : 1785mm high x 695mm wide x 830mm deep
      (Dimensions with door)
