Produk Detail

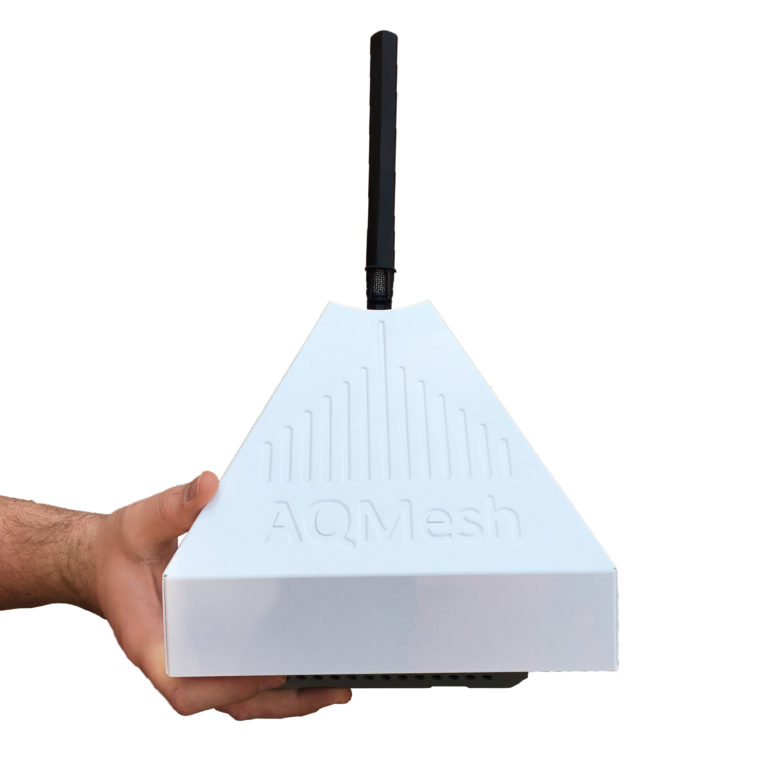

Jual Alat ISPU (Indeks Standard Pencemaran Udara) atau Alat Pemantau kualitas udara ambient meliputi pengukuran Debu dan gas berbahaya secara bersamaan dan hasil pengukuran akan ditampilkan pada layar monitor. Air Quality Monitoring System AQMGP 11-12 merupakan teknologi yang terbaru dari Inggris.  Data hasil pengukuran langsung dikirim ke Pabrik AQMESH Inggris

Alat ISPU : Indeks Standard Pencemaran Udara

Specification :
▪	Sensor life	:	Up to 2 years
▪	Power Options	:	Primary lithium metal batteries #3. Up to years  operation
			(depending on measurement strategi)   Main power option,
			External 12 DC power option,  Rechargeable NiMH Battery
			and Charger option
▪	Communication	:	Raw data sent to remote server via wireless
			Communications-Data access contract  may be required
▪	Physical	:	Enclosure  Polyurethane moulded or ABS, Protection IP65
			Approx size  L170xW220xH250mm (not inc antennaa 180mm)
			Weight  <2kg

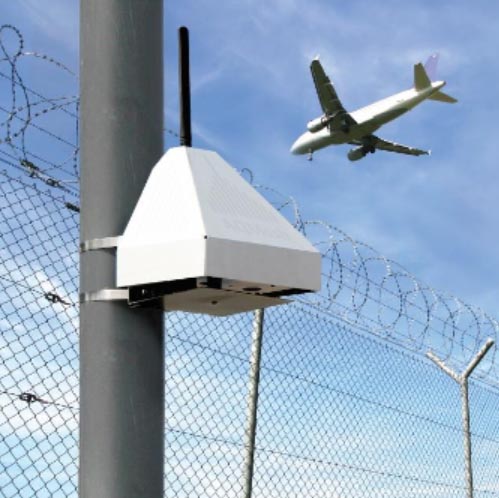

▪	Mounting	:	Various mounting accessories available
▪	Meas. period	:	Variable, from 1 minute to 1 hours
▪	Server software	:	Web browser based, processing of row data to   give
			indicate concentration, database storage on  secure server,
			data access-tables graph, data  download,
			multii-user access, pasword controlled
Parameters :			Range	Accuracy
▪	Dust PM10	:	0 - 1,000 µg/m3
▪	Dust PM2.5	:	0 - 500 µg/m3
▪	NO	:	0 - 4.000 ppb	±5 pbb
▪	NO2	:	0 - 4.000 ppb	±5 pbb
▪	CO	:	0 - 6000 ppm	±5 pbb
▪	SO2	:	0 - 10,000 ppm	±5 pbb
▪	Ozone (O3)	:	0 - 1,800 ppb	±5 pbb
▪	Temperature	:	-20 to + 100°C	± 2°C
▪	Relative Humidity	:	0 - 100% RH	± 5% RH
Complete Unit :
▪	Solar Panel Assembly, Including Bracket and Control if electric power not availabe
▪	Initial 2 years Contract for access to Uk Manufacture Data

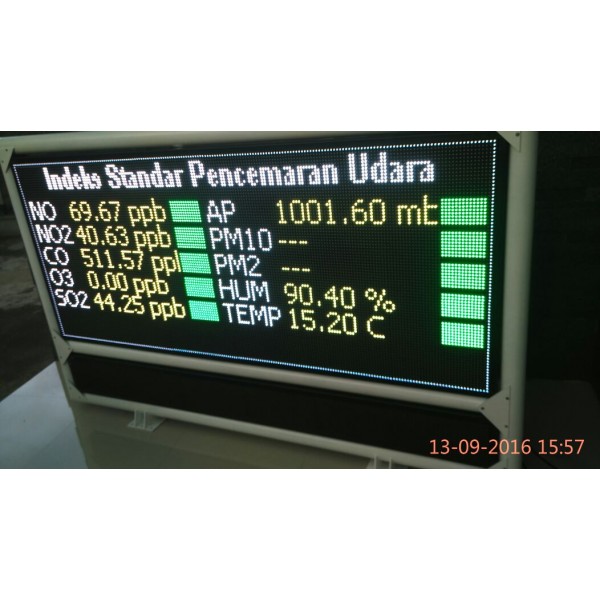

▪	Included Dispaly Monitoring ± 192 x 96 cm
▪	Manual books and Guarantee Card
